What is the advantage of dual shot injection molding?

What is Dual shot injection molding?

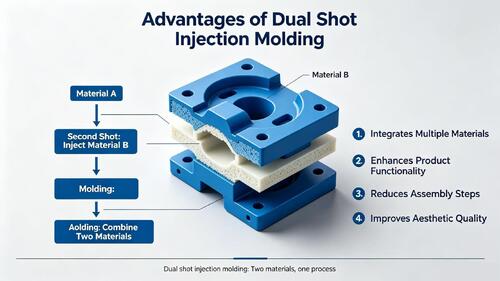

Dual shot injection molding, also called two-shot or 2K molding, is a simple manufacturing process. It makes one finished product with two different materials, colors or textures in one production cycle. It is different from conventional injection molding, which can only use one material or color each time. As shown in the figure below





Dual shot molding is good for design. It can combine different materials, colors or textures easily. You don’t need extra work like assembly or painting after production. For example, it can make a handle with a hard core and a soft grip in one step. This makes the product look better and feel more comfortable to use.

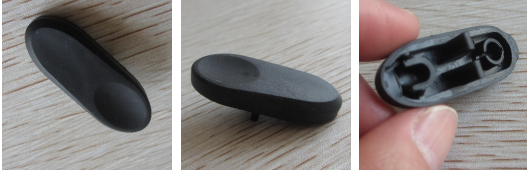

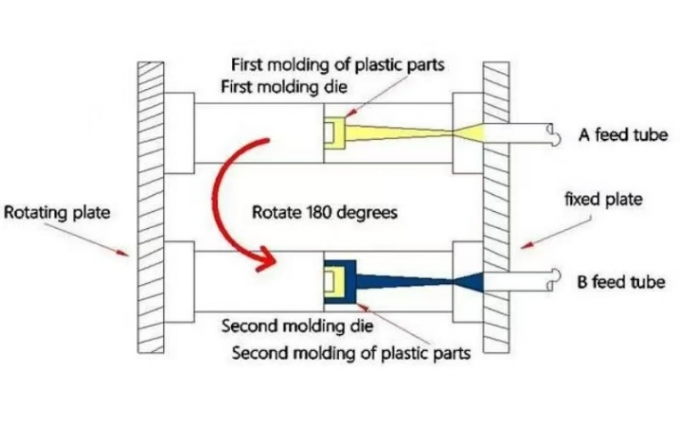

For example, if you want to customize the electronic buttons in the picture below through Dual-shot injection molding,you can uses one machine to inject two different materials in sequence, combining them into a single part. Process: First, inject the base. After the mold rotates, inject the outer layer.



It also improves production efficiency. Conventional molding needs separate production and manual assembly, which takes time and more labor. Dual shot molding finishes the whole product in one cycle. This saves time, reduces labor costs and lowers the chance of mistakes from manual work.



Products made by dual shot molding are more durable. Conventional assembled products use adhesives or fasteners, which may weaken over time. Dual shot molding fuses two materials together tightly, making the product stronger and longer-lasting.



Although dual shot molding needs more initial investment in molds and equipment, it saves money in the long run. It cuts post-production steps like assembly and painting, reduces waste and scrap rates, and is a good choice for many industries. If you need Dual shot injection molding services, welcome to contact us.
