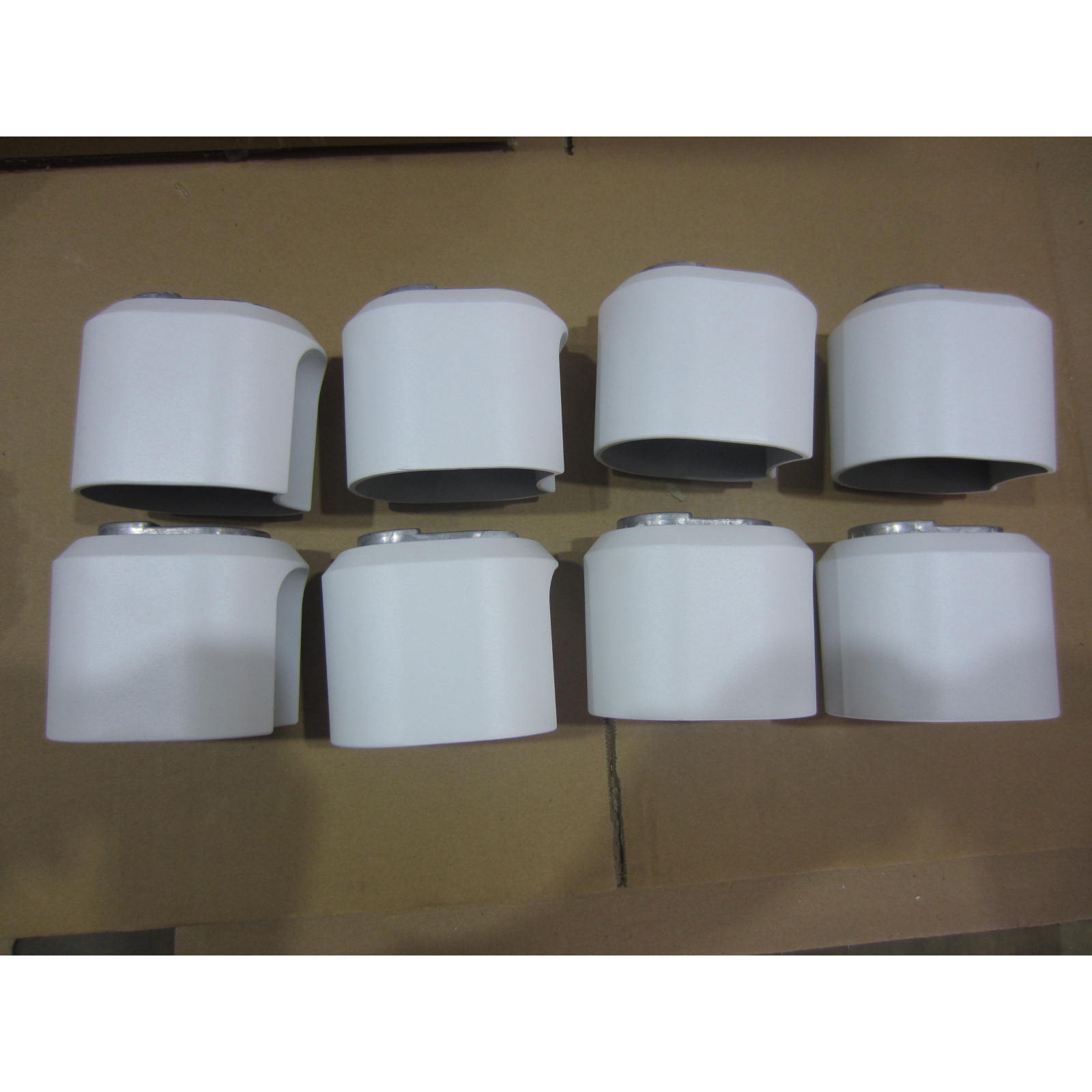

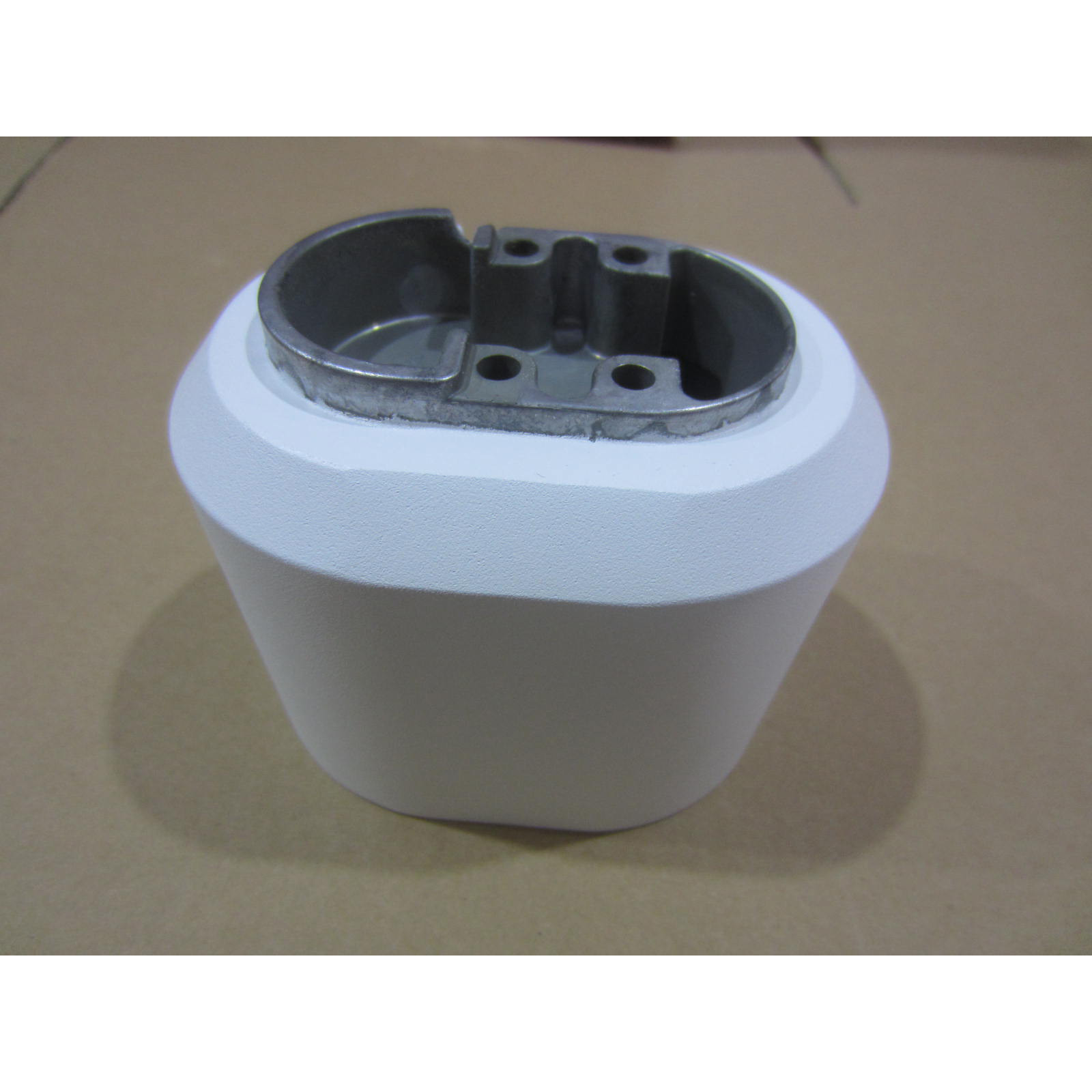

Medical Device Mounting Box | Die Cast Aluminum + CNC + Spray Paint OEM Housing

Product Description

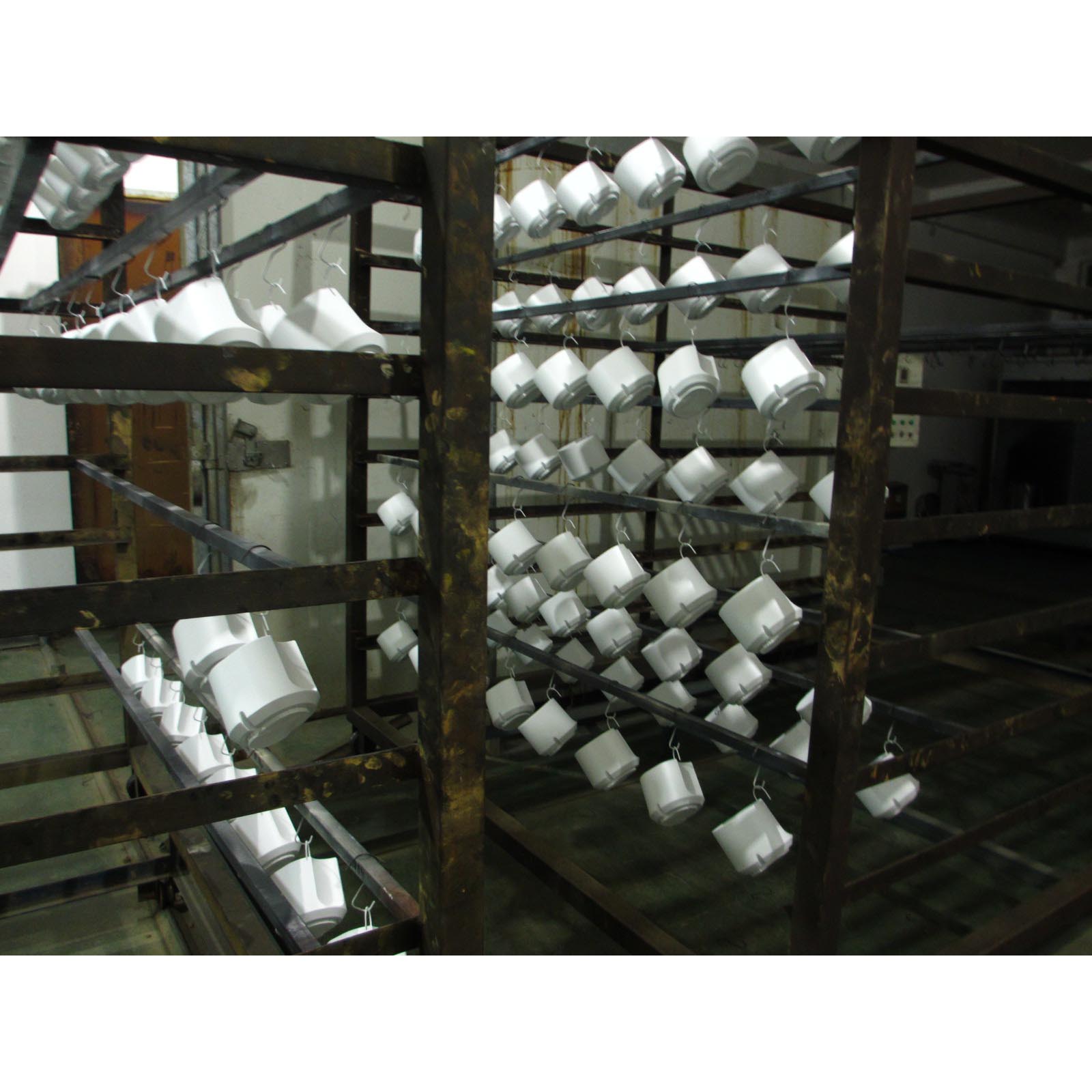

OVERVIEW Custom die-cast aluminum mounting box / installation enclosure for the same medical vision-testing platform as the Slide Base component. This structural housing provides secure mounting points, internal cable routing space, and a stable base for optical or electronic sub-assemblies. Manufactured via High-Pressure Die Casting (HPDC), followed by multi-face CNC machining and medical-grade spray painting for a clean, durable, clinic-ready appearance. MANUFACTURING SPECIFICATIONS • Material: Aluminum alloy ADC12 / A380 (medical-grade options available) • Process Flow: – High-Pressure Die Casting (HPDC) for net-shape box structure – Multi-face CNC machining (top, bottom, and side surfaces) – Drilling, tapping, and countersinking of mounting holes and threaded inserts – Deburring, cleaning, and chemical pretreatment – Spray painting / powder coating for medical-device finish • Dimensional Tolerance: ±0.05mm general; critical mounting and mating faces held to ±0.01mm • Machined Features: Precision mounting holes, tapped threads, locating pins, sealing surfaces, and cable-entry apertures • Surface Finish: Uniform spray coating with high adhesion, hardness, and chemical resistance • A-Surface Quality: No porosity, sink marks, flow lines, or flash on visible painted surfaces • Compatibility: Designed to pair with matching Slide Base and other OEM sub-assemblies KEY ADVANTAGES • Stable Mounting Platform: Rigid aluminum box provides a solid, vibration-resistant base for sensitive medical optics and electronics. • Multi-Face CNC Accuracy: Critical mating surfaces and hole patterns are CNC-machined for precise alignment with adjacent components. • Turnkey Finish: Integrated casting + machining + painting eliminates multi-vendor handoffs and finish mismatches. • Medical-Grade Appearance: Spray-painted surfaces meet clinic/hospital aesthetic and hygiene expectations. • Design Flexibility: Internal ribs, bosses, and standoffs can be cast in place to support PCBs, brackets, or cable channels. • Proven OEM Experience: Already in production for the same medical-instrument customer as the Slide Base assembly. TYPICAL APPLICATIONS • Medical vision-tester mounting boxes / base enclosures • Installation housings for ophthalmic diagnostic devices • Equipment pedestals and support boxes with internal cable routing • Medical instrument base frames requiring painted aluminum enclosures • Electronic medical device (EMD) structural housings • OEM medical equipment installation cases and junction boxes PROCESS NOTE Mounting boxes demand flatness and hole-position accuracy for proper assembly with the Slide Base and cover plates. Multi-face CNC setups are used to maintain positional tolerances across opposite and adjacent faces. Spray painting is preceded by full pretreatment (degreasing, chromating/phosphating, primer) to ensure long-term coating adhesion on aluminum. Film thickness, gloss, and cross-cut adhesion are verified per medical-device cosmetic standards. QUALITY ASSURANCE • CMM inspection of critical mounting-hole patterns, flatness, and mating-face dimensions • Thread gauge check on tapped holes; position tolerance verification • Cross-cut adhesion test, film-thickness measurement, and gloss check on painted surfaces • Visual inspection under controlled lighting for coating defects and cosmetic flaws • Material certificate, COC, and FAIR supplied with each shipment
